Description

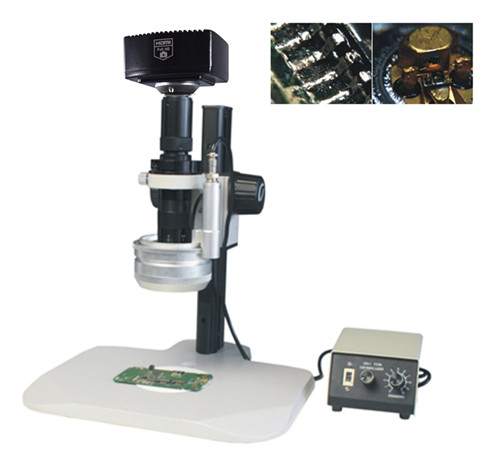

1. Automatic Rotary 3D Microscope
2. 360 Degree Rotational Function
3. Working Distance: 45mm
4. Magnification: 3X~200X
Features

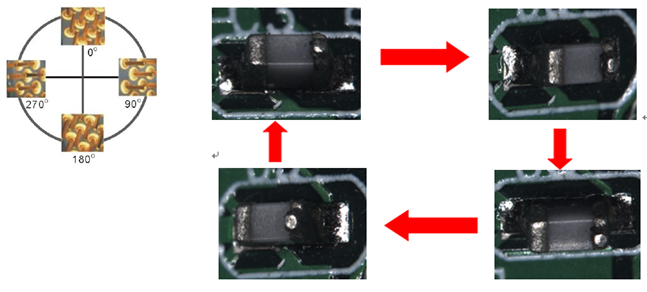

A. 360°angle automatic rotary, no complex adjustment. When zooming, central position remain the same. Imaging definition is keeping clear.
B. Super depth of field on the higher magnification; observe clearly on the different focal plane.
C. Control Box
1. ON/OFF/Pause (DC12V Output)
2. Rotating Direction Control
3. Rotating Speed Control
4. LED Brightness Adjustable and 4-zones Lighting Control
Applications
1. Micro-electronics

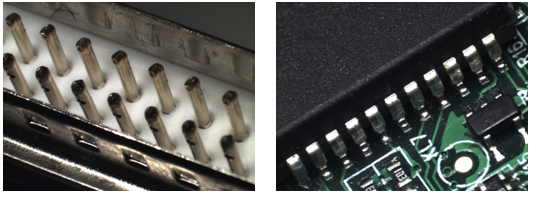

2. Precision Electronic Inspection
3. PCB Solder Testing Industries
4. Hardware & Precision Parts
5. Criminal Investigation and Life Sciences
6. Plant Morphology, etc.
Specifications
1. Objective Zoom Range: 0.4X—3.2X
2. Photography Eyepiece Magnification: 0.75X
3. Slideway Elevating Range: 160mm
4. Height of Slideway Stand: 326mm
5. Magnification: 3X~200X (Base on 17" Display)
6. Working Distance: 45mm
7. Stage Size: 318×308×16mm
8. Illumination: 100V～240V, LED Light
