Position: Index >> Products >> Microscope Accessory >> Objective Lens

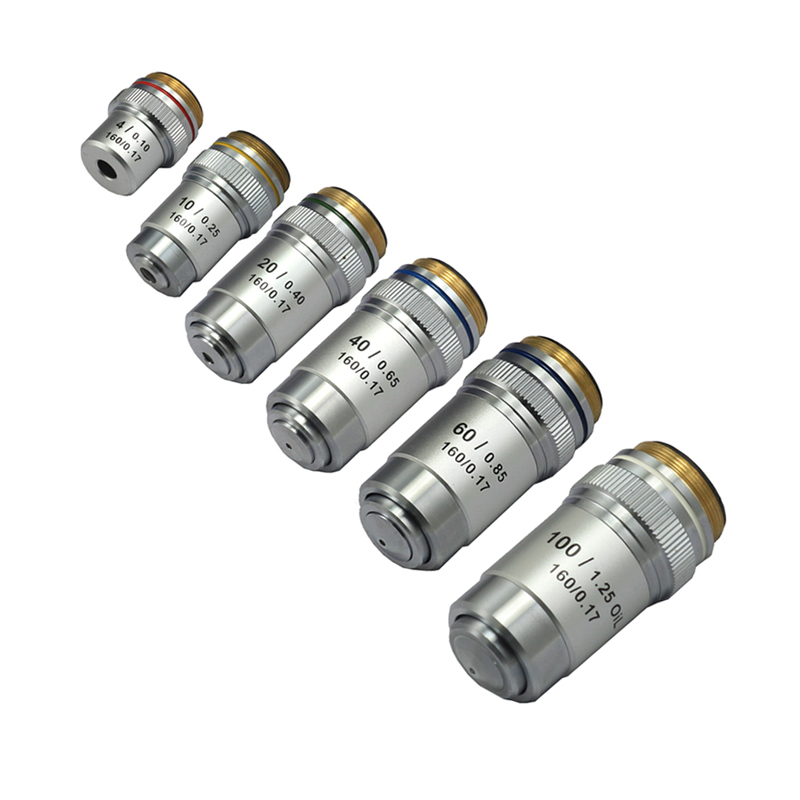

195mm Achromatic Objective (Model:FW33 Series)

Specification

1. Conjugate Distance: 195mm
2. Mechanical Tube Length: 160mm
3. Parfocal Distance: 45mm

Parameters

Objective Lens	Numerical Aperture	Working Distance(mm)
4X	0.1	37.5
10X	0.25	6.554
20X	0.4	2.103
40X	0.65	0.65
60X	0.85	0.46
100X	1.25	0.198
