Feature
1. 1/1.8 " Sony 12MP Sensor
2. Built-in Measurement System, up to 20 Graphic Options
3. 4K/2K Automatic Switch HD Output Mode
4. Support 4K/2K photo and video
5. Minimal UI, Mouse Conreol
6. 1920*1080@60FPS、3840*2160@30FPS
7. Standard C-mount Interface.
Technical Parameter
Specification | Sensor Size | 1/1.8 " |
Effective Pixels | 12Megapixels | |
Resolution | 1920*1080@60FPS、3840*2160@30FPS | |
Output | HDMI, TF Card | |
Pixel Size | 1.85*1.85μm | |
Power | DC-12V/1A | |
Features | UI | Digital Design, Mouse Operation, Humanized Design |
Labeling Functions | Point Coordinates, Cross Lines, Coordinate Systems, Text Annotations | |
Length Measurement | Line Length, Line Length, Curve Length, Parallel Line Distance, Point Line Distance | |
The Center Distance | The Radius Fixed Circle, 2points Setting Circle, 3points Setting Circle | |
Geometric Measurement | Line Length, Radius Fixed Circle, 2point Fixed Circle, 3point Fixed Circle, Concentric Circles | |
The Geometric Area | Polygon, Square | |
Image Fast | Support for 4K Static Photos | |
Video | Support 4K Video | |
Measurement System | S-EYE | |
Package | Size | 75.00*38.80*75.00mm |
Weight | 0.3Kgs | |
Accessory | HDMI Cable, DC-12V Power Adapter |

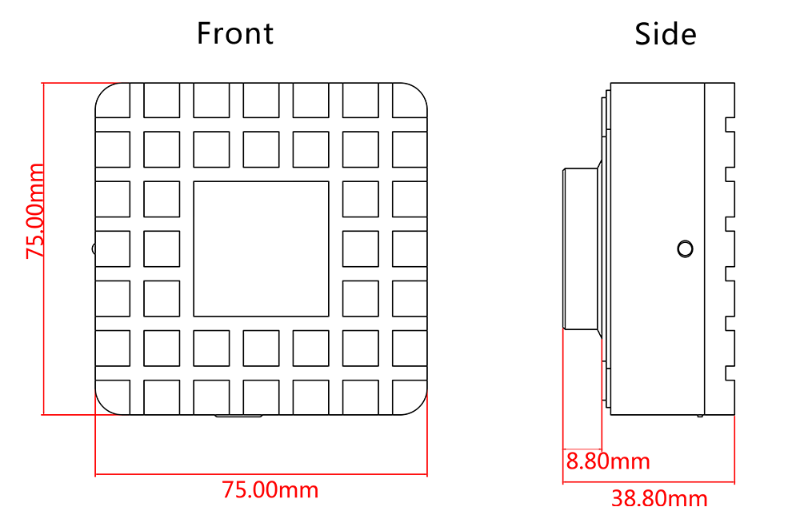

Production Size
Functions

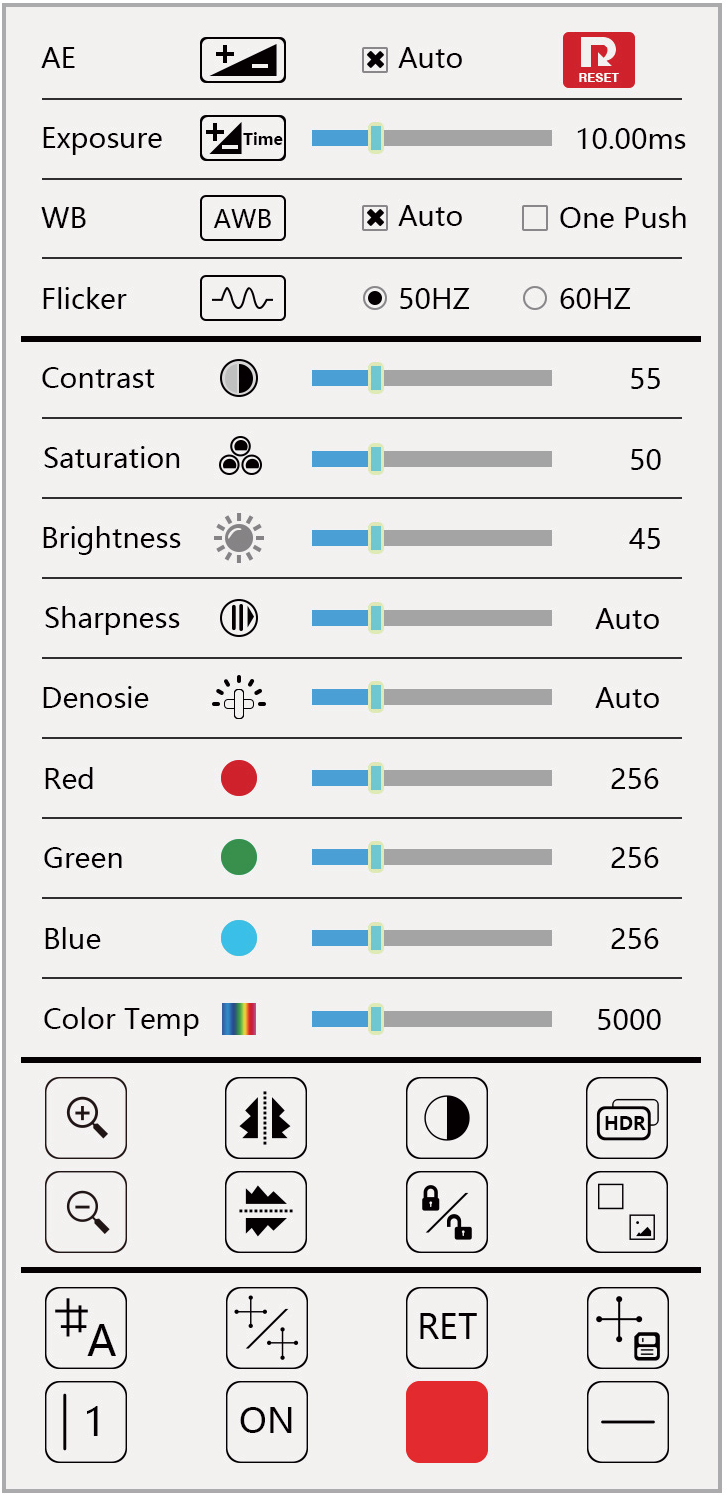

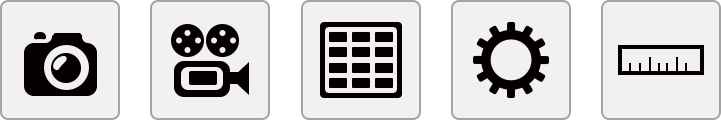

Main Menu

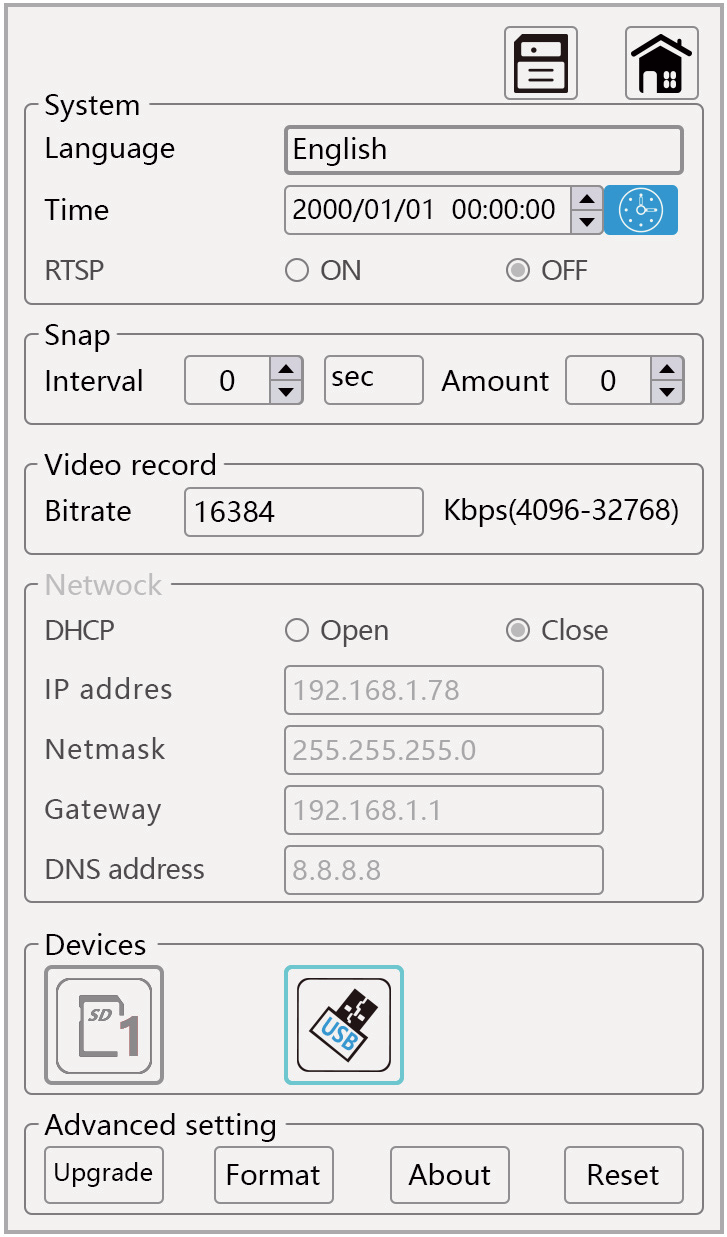

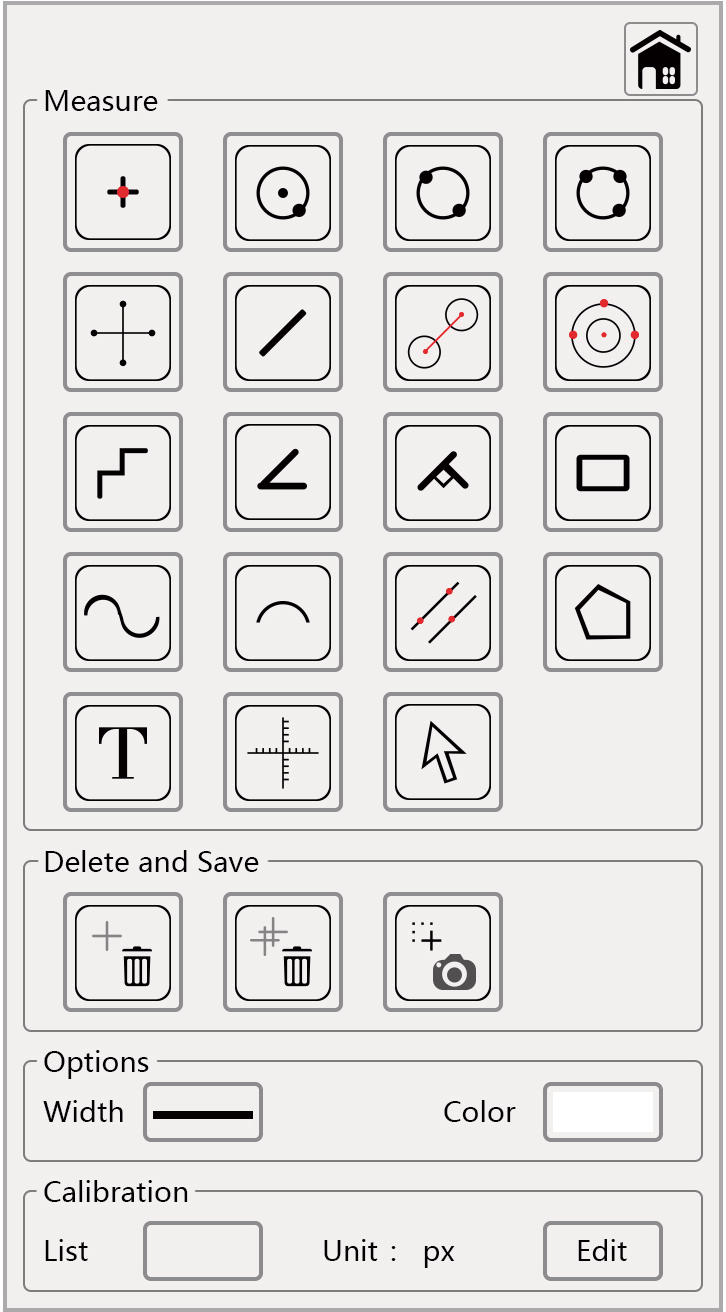

Measurement Interface Setting Set Function
