Description

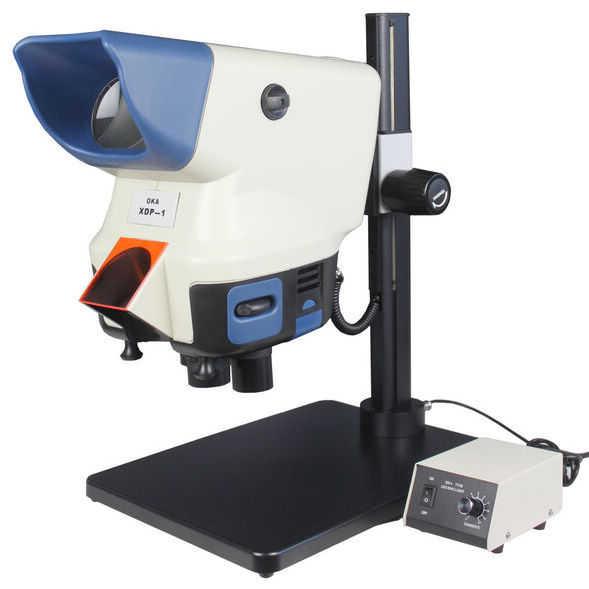

1. Wide-field Microscope with square base is the new large viewing field microscope.
It produces sharp and stereoscopic images. It is to be operated easily and comfortable.
Widely applied to biological dissection, electronics, minerals, restoration culture relic etc.
2. Original creation & designing in combination with visual project.
3. Provide with various objectives of 2X, 4X, 6X, 8X, 10X and 15X magnification.
4. In humanized operation, it can be installed 3 objectives, so that easy to change different magnification.
5. For the long time viewing without visual weariness, the freely and comfortably operating can be beyond the visual limit, and improve the working efficiency.
6. Possessing the super-long working distance, super-large viewing field and depth of focus.
Specification
Objective | Working Distance (mm) | Viewing Field (mm) |
2X | 208 | 68 |
4X | 98 | 34 |
6X | 80 | 22.7 |
Illumination | Outer LED Light Source, Brightness Adjustment | |
Track Stand | Base Plate Size: 400×300×20mm (15.74x11.81x0.78 Inches) | |
Height of Vertical Arm: 500mm | ||
Travel Distance: 200mm | ||
Optional Accessory
Objective | Working Distance(mm) | Viewing Field(mm) |
8X | 48 | 17 |
10X | 46 | 13.6 |
15X | 50 | 9.1 |
6X(SL) | 115 | 22.7 |
